Full Description

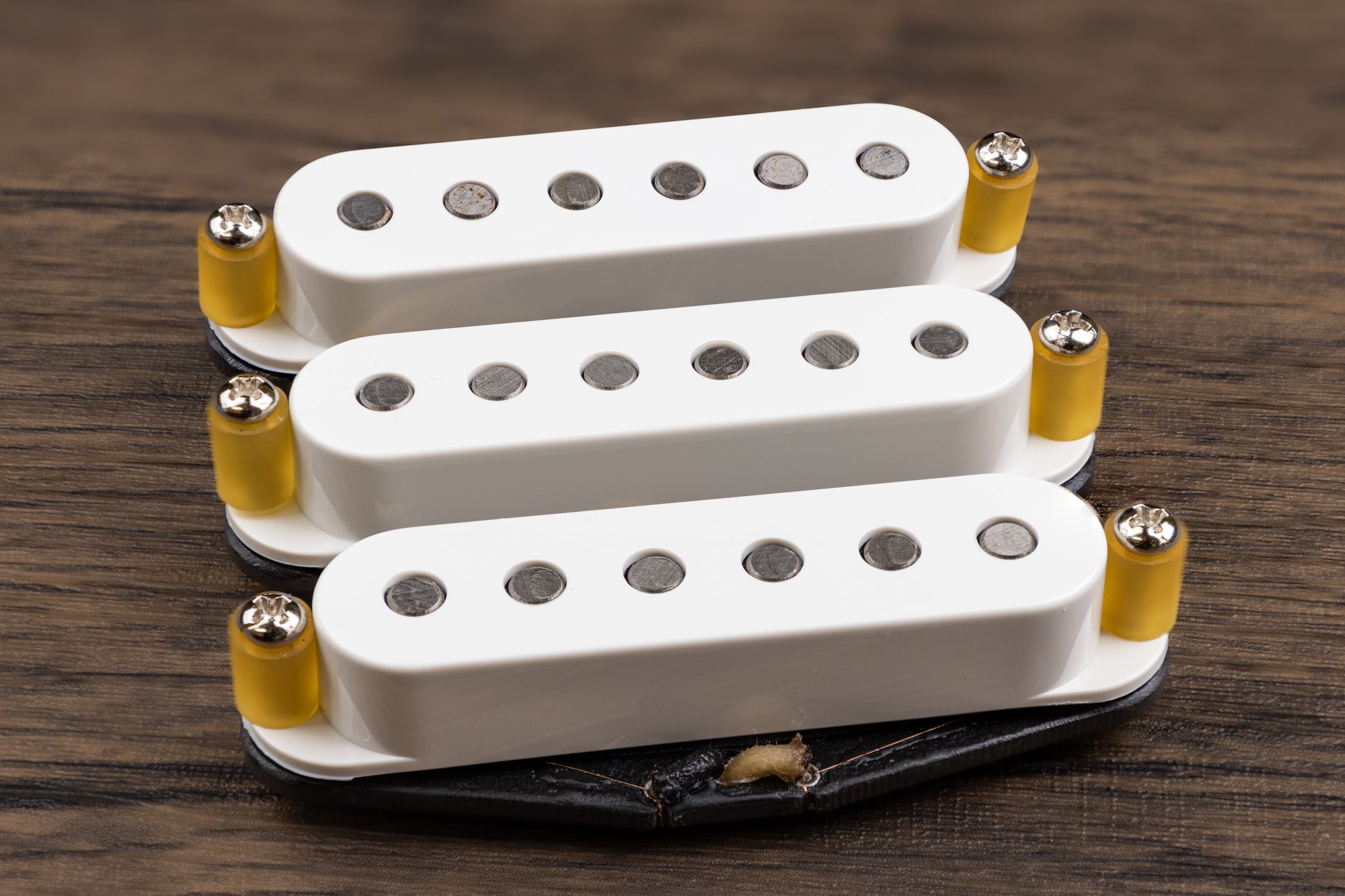

The Pure Vintage set from Tonerider is the perfect upgrade for any player looking for that warm, vintage Stratocaster sound.
Never harsh, full of chime and equally at home with clean or dirty amps, this is the set that defined the Tonerider approach to pickup making more than 20 years ago. Wound with heavy AWG42 wire and scatterwound to mimic the "Holy Grail" of single coil guitar tones - the late 50s strat.
The Pure Vintage set uses rod magnets with our "Modified Vintage Stagger" allowing for great string to string balance on a wide range of instruments.
Each pickup is fully wax potted to reduce any microphonic feedback, and comes supplied with screws, latex height adjustment tubing and an installation guide.
Tech Specs
| Pure Vintage Neck | Pure Vintage Middle | Pure Vintage Bridge | |
|---|---|---|---|
| Model | S1N | S1M | S1B |
| Magnet | Alnico 5 Rod | Alnico 5 Rod | Alnico 5 Rod |
| DCR | 5.9k | 6.1k | 6.45k |
| Inductance | 2.3H | 2.4H | 2.6H |
| Stagger | TR Vintage Modified | TR Vintage Modified | TR Vintage Modified |
| Hookup Wire | Vintage Braid | Vintage Braid | Vintage Braid |
| Winding Direction | Clockwise | Counter-Clockwise | Clockwise |
| Polarity | North Pole Up | South Pole Up | North Pole Up |
Dimensions
Wiring Diagrams
- 3 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
- 3 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Bridge Tone Mod)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade / Push-Pull Coil Split (Volume)
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade
- 2 Humbuckers / 1 Single Coil / 1 Vol / 2 Tone / 5-Way Blade / DPDT Mini-Toggle Split
